Aligning, colors and borders

This example shows how to use aligning, colors, borders and fill patterns.

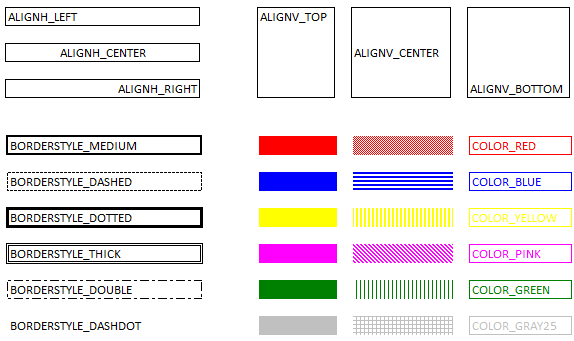

See result in acb.xls.

#include "libxl.h"

using namespace libxl;

class Example
{
public:

    Example()
    {
        book = xlCreateBook();
        sheet = book->addSheet(L"Sheet1");
    }

    ~Example()
    {
        book->release();
    }

    void showH(unsigned short row, AlignH align, const wchar_t* alignStr)
    {
        Format* format = book->addFormat();
        format->setAlignH(align);
        format->setBorder();
        sheet->writeStr(row, 1, alignStr, format);
    }

    void showV(unsigned short col, AlignV align, const wchar_t* alignStr)
    {
        Format* format = book->addFormat();
        format->setAlignV(align);
        format->setBorder();
        sheet->writeStr(2, col, alignStr, format);
        sheet->setMerge(2, 6, col, col);
    }

    void showB(unsigned short row, BorderStyle style, const wchar_t* styleStr)
    {
        Format* format = book->addFormat();
        format->setBorder(style);
        sheet->writeStr(row, 1, styleStr, format);
    }

    void showC(unsigned short row, Color color, const wchar_t* colorStr)
    {
        Font* font = book->addFont();
        font->setColor(color);
        Format* format = book->addFormat();
        format->setBorder();
        format->setBorderColor(color);
        format->setFont(font);
        sheet->writeStr(row, 7, colorStr, format);
    }

    void showP(unsigned short row, Color color, FillPattern pattern = FILLPATTERN_SOLID)
    {
        Format* format = book->addFormat();
        format->setFillPattern(pattern);
        format->setPatternForegroundColor(color);
        sheet->writeBlank(row, pattern == FILLPATTERN_SOLID ? 3 : 5, format);
    }

    void run()
    {
        sheet->setDisplayGridlines(false);

        sheet->setCol(1, 1, 30);
        sheet->setCol(3, 3, 11.4);
        sheet->setCol(4, 4, 2);
        sheet->setCol(5, 5, 15);
        sheet->setCol(6, 6, 2);
        sheet->setCol(7, 7, 15.4);

        showH(2, ALIGNH_LEFT, L"ALIGNH_LEFT");
        showH(4, ALIGNH_CENTER, L"ALIGNH_CENTER");
        showH(6, ALIGNH_RIGHT, L"ALIGNH_RIGHT");

        showV(3, ALIGNV_TOP, L"ALIGNV_TOP");
        showV(5, ALIGNV_CENTER, L"ALIGNV_CENTER");
        showV(7, ALIGNV_BOTTOM, L"ALIGNV_BOTTOM");

        showB(12, BORDERSTYLE_MEDIUM, L"BORDERSTYLE_MEDIUM");
        showB(14, BORDERSTYLE_DASHED, L"BORDERSTYLE_DASHED");
        showB(16, BORDERSTYLE_DOTTED, L"BORDERSTYLE_DOTTED");
        showB(18, BORDERSTYLE_THICK, L"BORDERSTYLE_THICK");
        showB(20, BORDERSTYLE_DOUBLE, L"BORDERSTYLE_DOUBLE");
        showB(22, BORDERSTYLE_DASHDOT, L"BORDERSTYLE_DASHDOT");

        showP(12, COLOR_RED);
        showP(14, COLOR_BLUE);
        showP(16, COLOR_YELLOW);
        showP(18, COLOR_PINK);
        showP(20, COLOR_GREEN);
        showP(22, COLOR_GRAY25);

        showP(12, COLOR_RED, FILLPATTERN_GRAY50);
        showP(14, COLOR_BLUE, FILLPATTERN_HORSTRIPE);
        showP(16, COLOR_YELLOW, FILLPATTERN_VERSTRIPE);
        showP(18, COLOR_PINK, FILLPATTERN_REVDIAGSTRIPE);
        showP(20, COLOR_GREEN, FILLPATTERN_THINVERSTRIPE);
        showP(22, COLOR_GRAY25, FILLPATTERN_THINHORCROSSHATCH);

        showC(12, COLOR_RED, L"COLOR_RED");
        showC(14, COLOR_BLUE, L"COLOR_BLUE");
        showC(16, COLOR_YELLOW, L"COLOR_YELLOW");
        showC(18, COLOR_PINK, L"COLOR_PINK");
        showC(20, COLOR_GREEN, L"COLOR_GREEN");
        showC(22, COLOR_GRAY25, L"COLOR_GRAY25");

        book->save(L"acb.xls");
    }

private:
    Book* book;
    Sheet* sheet;
};

int main()
{
    Example example;
    example.run();

    return 0;
}
